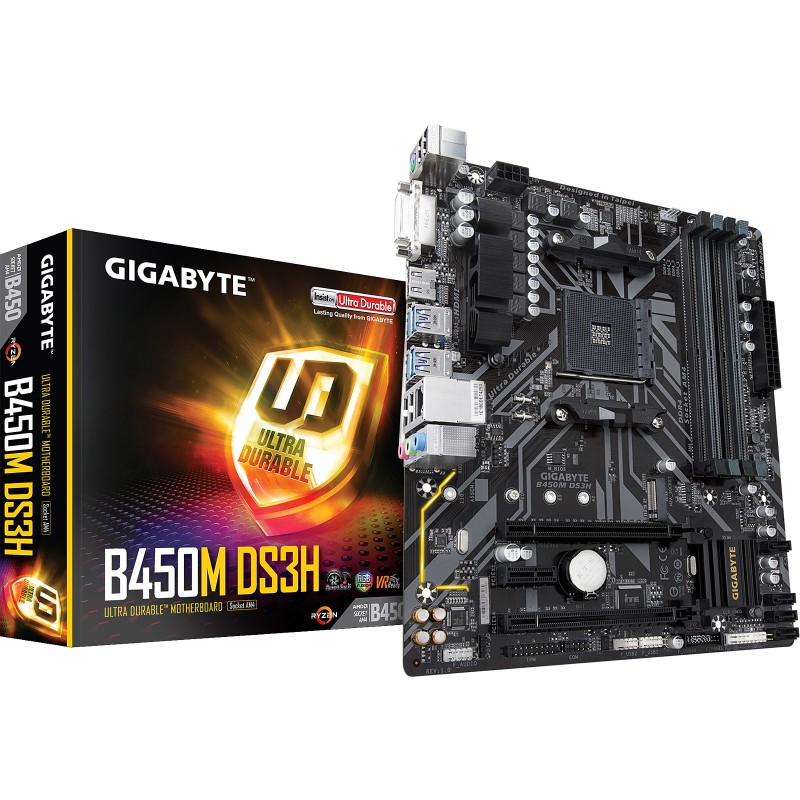

GIGABYTE B450M DS3H V2

*Procesador:AM4 Socket

Supports AMD Ryzen™ 5000 series / 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

(Por favor, acuda a "lista de soporte de CPU" para más información.)

*Chipset:

AMD B450

*Memoria:

4 x DDR4 DIMM sockets supporting up to 128 GB of system memory

Arquitectura de memoria Dual Channel

Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules

Soporte para módulos de memoria ECC Un-buffered UDIMM 1Rx8/2Rx8 (operando en modo no-ECC)

Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8

Soporte para módulos de memoria Extreme Memory Profile (XMP)

*Gráfica Integrada Procesador gráfico integrado

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)

* Support for HDMI 2.0 version and HDCP 2.2.(Note)

Maximum shared memory of 16 GB

(Note) Actual support may vary by CPU.

*Audio:

Realtek® audio codec

Audio de alta definición

2/4/5.1/7.1-channel

* Para configurar el audio de 7.1 canales, tiene que utilizar un módulo frontal de audio HD y activar la función de múltiples canales de audio a través del controlador de audio.

Soporte para salida S / PDIF

*LAN:

Chip Realtek® GbE LAN (10/100/1000 Mbit)
