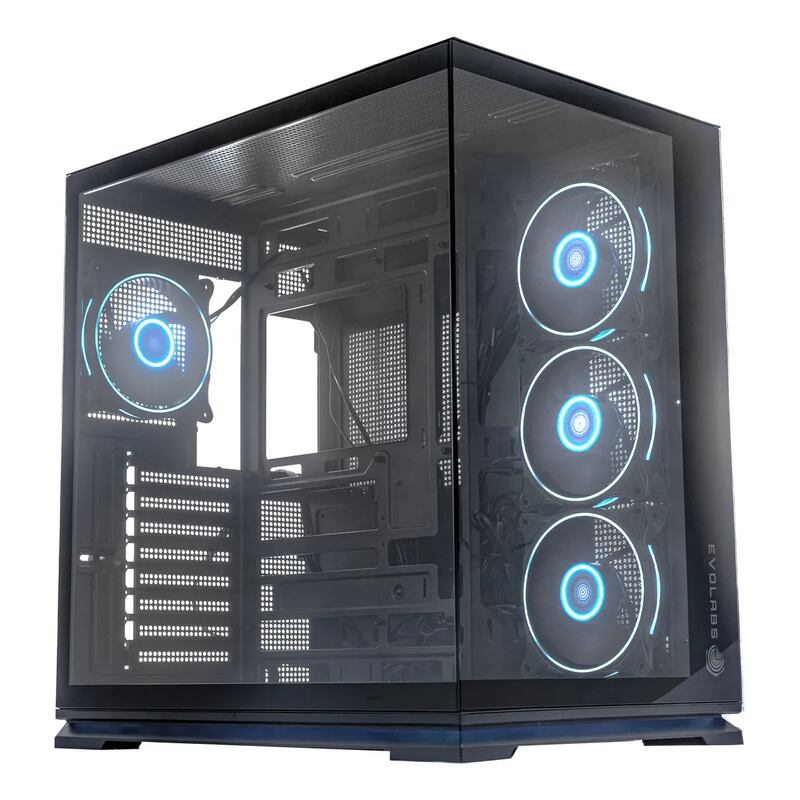

Evolabs Luma X

Front Panel: 4mm Tempered glass

Top Cover: Magnetic dust filter

Bottom Panel: 3-Side surrounding hidden ARGB LED strip + PVC dust filter

Left Side Panel: 4mm Tempered glass

Right Side Panel: Metal with ventilation holes

Chassis: SPCC 0.5 + 0.6 + 0.7mm

Motherboard Type: ATX / M-ATX / ITX (supports Back Connect motherboards)

Front Ports: 1x USB 3.0 + 1x USB 2.0 + HD Audio

PSU Port: Side ATX chamber (190 mm)

Reserved Fan Ports:

Top: 3x 120 mm or 2x 140 mm

Support 120 / 240 / 280 / 360 liquid cooler

Front: N/A

Right Side: 3x 120 mm

Support 120 / 240 / 360 liquid cooler

Rear: 1x 120 mm

Support 120 liquid cooler

Bottom: 3x 120 mm

Fans included: 4x 120mm (3x Reverse Fan + 1x Normal Fan)

Fan light: ARGB Rings

Fan RPM: 600RPM MIN. / 1600RPM MAX.

Fan Airflow: 43CFM (MAX.)

Fan Noise: 28.8 dBA (MAX.)

Fan Connector: 4 pin PWM

Fan ARGB Controller: Included

Number of Fan / ARGB Connectors: 4

Fan Connectors: 3 / 4 pin

Fan ARGB Connectors: 3 pin ARGB

ARGB Control: LED button or motherboard sync (ARGB header)

Controller Power: SATA Connector

Drive Bays: 3.5" HDD x2 + 2.5" SSD x1 (Shared with 3.5" bay)

PCI Slots: x 8

Chassis Size (L x W x H): 428 x 280 x 415 mm

Case Size (L x W x H): 442 x 280 x 445 mm

Carton Box Size (L x W x H): 490 x 337 x 494 mm

Max. VGA Card: 420 mm

Max. CPU Cooler: 165 mm

Cable Management: 96 mm

Weight: 6.0 kg / 7.2 kg
